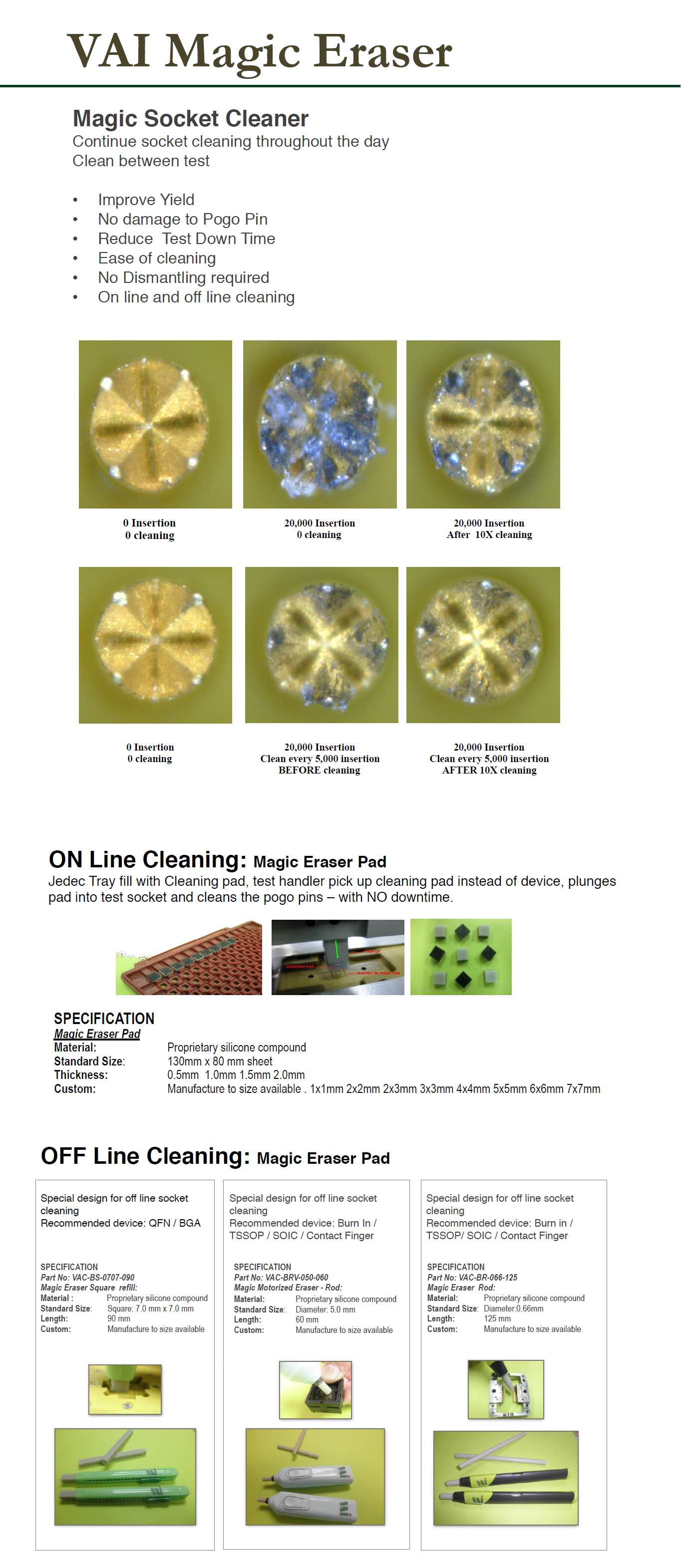

| Magic Socket Cleaner |
|
 |
| Continue socket cleaning throughout the day |
 |
Clean between test |
|
Improve Yield |
|
No damage to Pogo Pin |
|
Reduce Test Down Time |
|
Ease of cleaning |
|
No Dismantling required |
|
On line and off line cleaning |
| |
| |
 |
|
 |
|
 |
|
| |

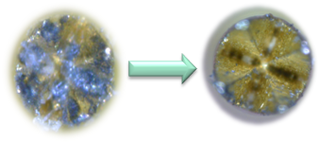

0 Insertion
0 cleaning |
|
20,000 Insertion
0 cleaning |
|
20,000 Insertion
After 10X cleaning |
|
| |
| |
 |
|
 |
|
 |
|
| |
0 Insertion
0 cleaning |
|
20,000 Insertion
Clean every 5,000 insertion
BEFORE cleaning |
|
20,000 Insertion
Clean every 5,000 insertion
AFTER 10X cleaning |
|
|
| |
|

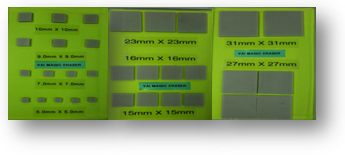

| ON Line Cleaning: Magic Eraser Pad |
Jedec Tray fill with Cleaning pad, test handler pick up cleaning pad instead of device, plunges pad into test socket and cleans the pogo pins – with NO downtime.
  |
|
 |
| |
| SPECIFICATION |
|
 |
|
| Magic Eraser Pad |
|
|
| Material |
|
: |
|
Proprietary silicone compound |
|
| Standard Size |
|
: |
|
130mm x 80 mm sheet |
|
| Thickness |
|
: |
|
0.5mm 1.0mm 1.5mm 2.0mm |
|
| Custom |
|
: |
|
Manufacture to size available |
|
|
| |
|
| OFF Line Cleaning: Magic Eraser |
| |
Part No: VAC-BS-0707-090
Magic Eraser Square refill:
|
|
 |
Special design for off line socket cleaning
Recommended device: QFN / BGA |
| SPECIFICATION |
| Material |
|
: |
|
Proprietary silicone compound |
| Standard Size |
|
: |
|
Square: 7.0 mm x 7.0 mm |
| Length |
|
: |
|
90 mm |
| Custom |
|
: |
|
Manufacture to size available |
|
| |
| |
Part No: VAC-BRV-050-060
Magic Motorized Eraser - Rod: |
|
 |
Special design for off line socket cleaning
Recommended device: Burn In / TSSOP / SOIC / Contact Finger |
| SPECIFICATION |
| Material |
|
: |
|
Proprietary silicone compound |
| Standard Size |
|
: |
|
Diameter: 5.0 mm |
| Length |
|
: |
|
60 mm |
| Custom |
|
: |
|
Manufacture to size available |
|
| |
| |
Part No: VAC-BR-066-125
Magic Eraser Rod: |
|
 |
Special design for off line socket cleaning
Recommended device: Burn in / TSSOP/ SOIC / Contact Finger |
| SPECIFICATION |
| Material |
|
: |
|
Proprietary silicone compound |
| Standard Size |
|
: |
|
Diameter: 0.66 mm |
| Length |
|
: |
|
125 mm |
| Custom |
|
: |
|
Manufacture to size available |
|
